Marine Chain Elevators

chains, reinforced links, pulleys, buckets

We provide over 30 years of made-to-order parts suitable for all types of bucket elevators, inclined or vertical. Here are a few standard components that we find in many facilities. Ask us for other parts, dimensions, or series!

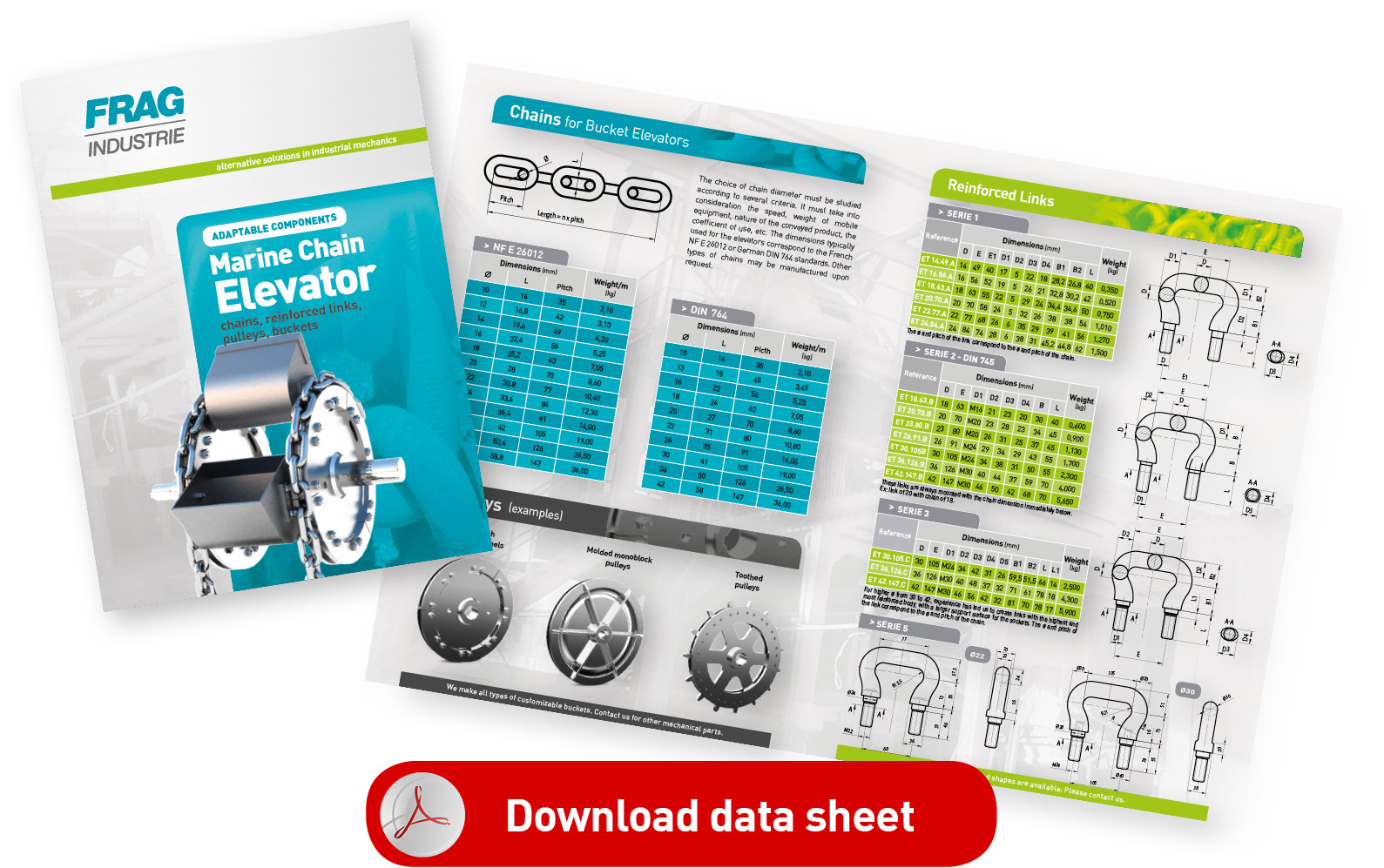

btdwnld-marine-chain-elevator

CHAINS FOR BUCKET ELEVATORS

The choice of chain diameter must be studied according to several criteria.
It must take into consideration the speed, weight of mobile equipment, nature of the conveyed product, the coefficient of use, etc. The dimensions typically used for the elevators correspond to the French NF E 26012 or German DIN 764 standards. Other types of chains may be manufactured upon request.

elevator-marine-chain-schema
elevator-marine-chain-nf-e-26012
elevator-marine-chain-din-764

REINFORCED LINKS

serie 1

elevator-marine-chain-link-serie1-tab
elevator-marine-chain-link-serie1

serie 2

elevator-marine-chain-link-serie2-tab
elevator-marine-chain-link-serie2-din-745

serie 3

elevator-marine-chain-link-serie3-tab
elevator-marine-chain-link-serie3

serie 5

elevator-marine-chain-link-serie5-22
elevator-marine-chain-link-serie5-30

PULLEYS

elevator-molded-monoblock-pulleys

Pulleys with removable wheels

elevator-pulleys-with-removable-wheels

Molded monoblock pulleys

elevator-toothed-pulleys

Toothed pulleys

BUCKETS

We make all types of customizable buckets.

elevator-marine-chain-bucket

Contact us for other shape or other mechanical parts.
